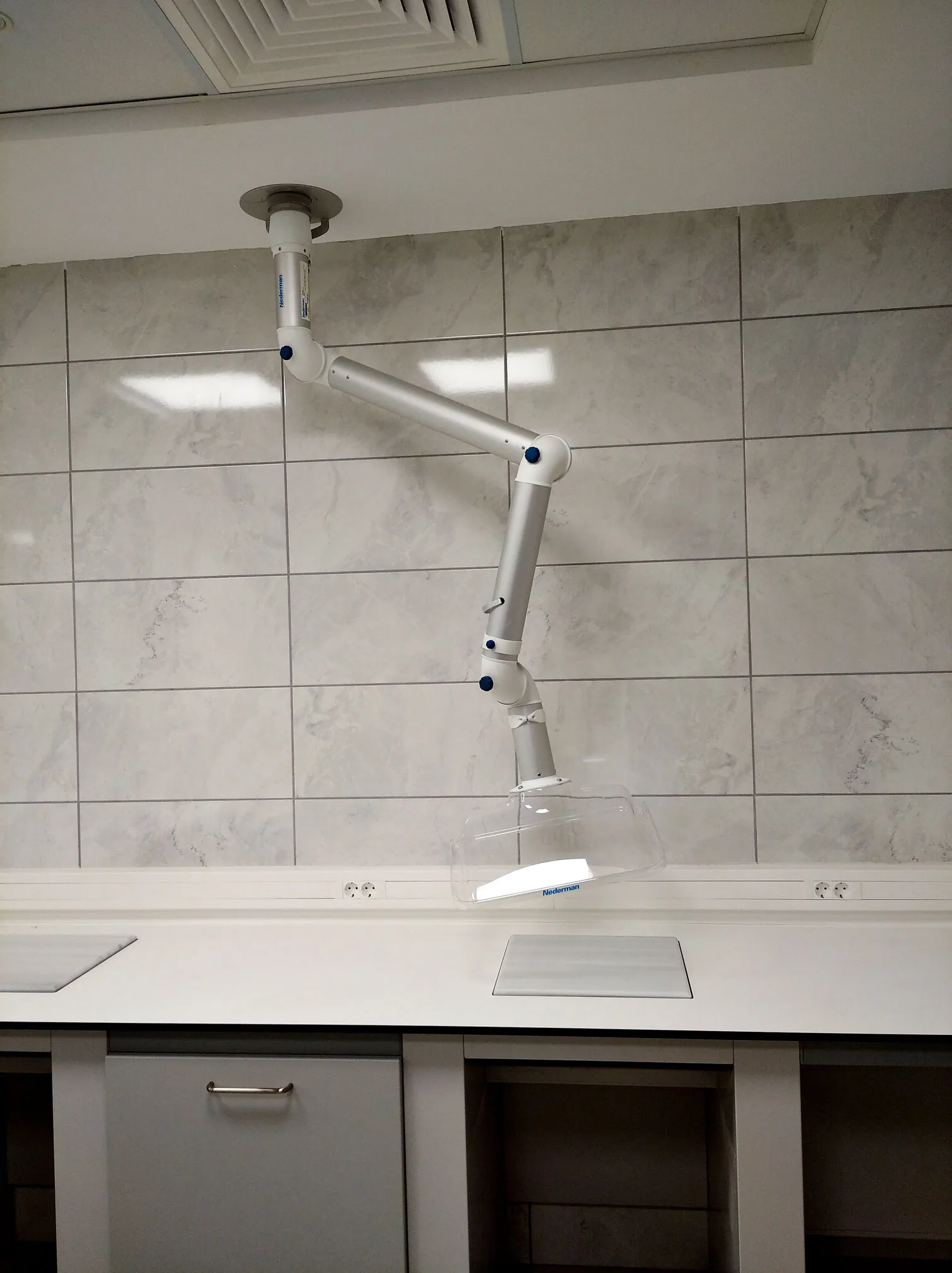

This local air suction arm may be fixed on the ceiling and utilized by moving it into the appropriate position. The ceiling is equipped with a point polluted air outflow for a laboratory, workshop, etc. With the right fan motor and exhaust air duct, it is the ideal way to remove hazardous or contaminated air from the area.
The ears may be fastened by tightening the joints once they have been simply moved into the proper position. Aluminum that has been anodised makes up tri-joint arms. The primary suction pipe features a reverse-reaction spring that will keep the arm from sagging. Anodized aluminum is used for the ceiling mount as well. It may be up to 2 meters long. Cutting may be used to shorten the feet for ceiling installation as necessary. The local air suction arm’s joint components are composed of chemically resistant PP plastic.
The suction mouth has a clear polycarbonate hood. The air suction quantity is controlled manually by an air flap. The local absorber’s scanning radius is 1500mm. Thus, a circle with a 3 m diameter may be properly employed with it.
