Dimensions: depth: min: 110cm max: 180cm height min: 70cm max: 95cm
C-Frame laboratory benches are used for all kinds of laboratory works icluding analysis, testing, experimentation etc. The lower parts of the C-Frame laboratory workbenches can be produced with storage cabinets and / or with knee spaces.
Laboratory Bench Carrier System: C Frame steel construction made of 30x60x2mm or 40x60x2mm box profiles. Hard plastic pingo feet are used on the parts that touch the ground
Laboratory Bench Working Surface: Can be changed upon request. Work surfaces that can be applied to our products;
It is one of the most preferred materials. It is a high performance product. It has good chemical resistance. Heat, scratch and impact resistance is very high. However, if cleaning is not taken care of, chemicals may leave stains over time. Stains do not have a disadvantage to use, but black color can be preferred to avoid this aesthetically.
Industrial ceramics are produced in one piece without joints. Chemical resistance is very high. Resistant to all known chemicals except hydrogen fluoride and its solutions. Very high heat and scratch resistance. Impact resistance is not good. Thicknesses of 10-22-26mm are applied with or without barrier. It can be produced together with cupsink (drip cup) sink from its own material for fume cupboards.
This system has triangular shaped towers and metal shelves located between them. Electrical and data sockets, gas and water taps can be installed on the towers according to need.
In this system there are shelves hanging on strut profiles. Under the shelves, electric ducts icluding power and data sockets can be installed if needed.

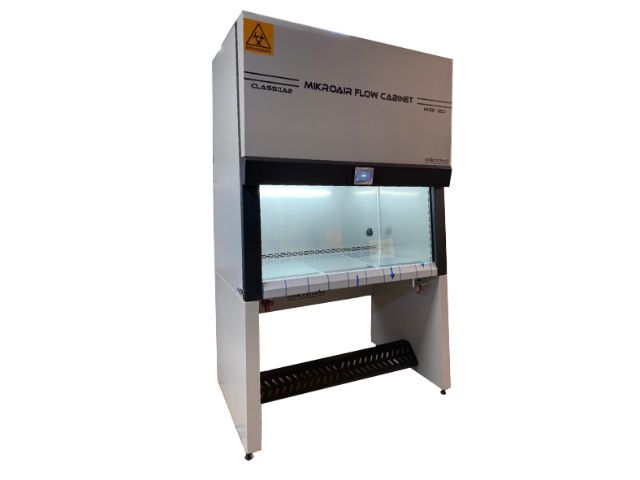

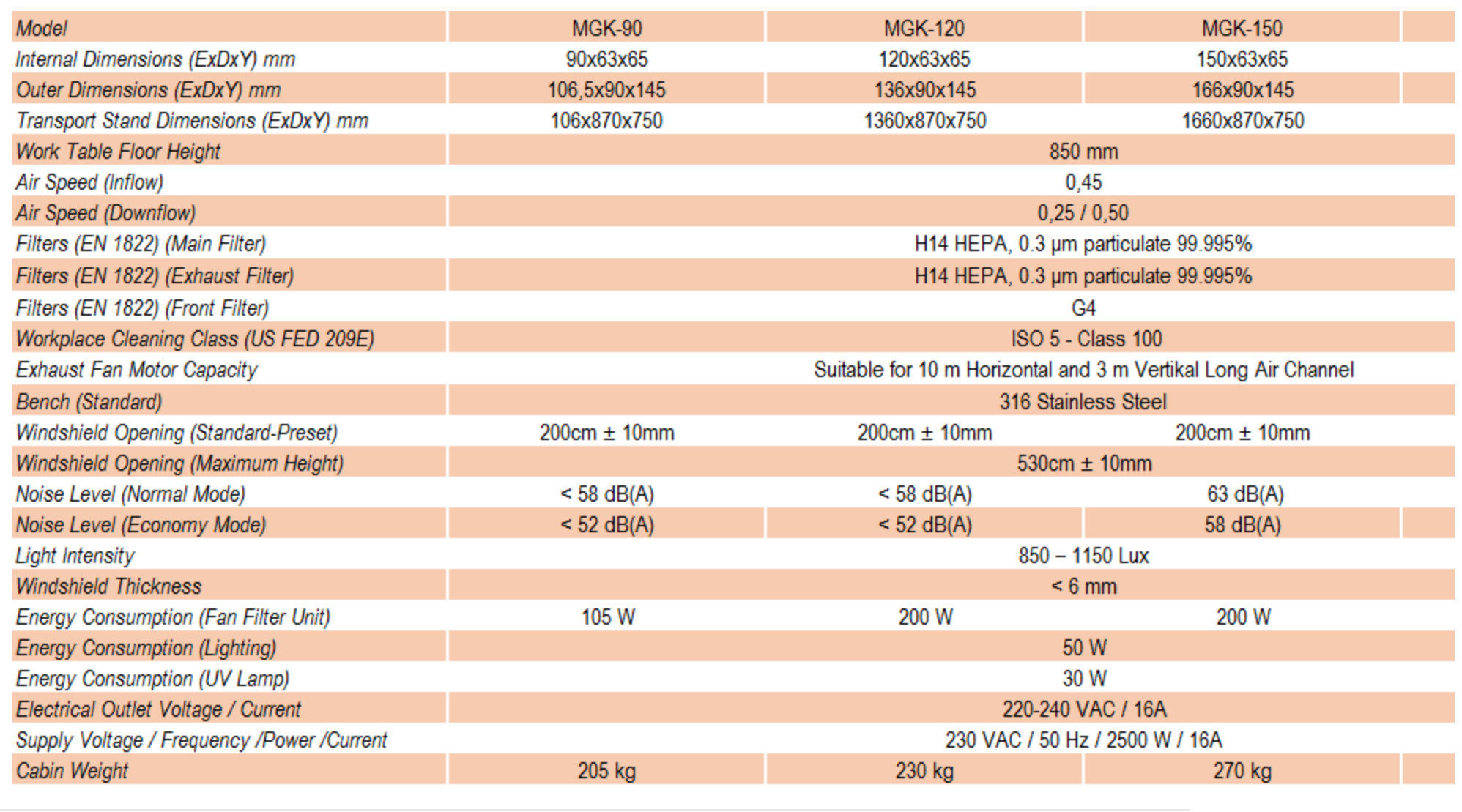

Offering high-level protection for the user, environment and product, the MGK Series Microbiological Safety Cabinets are designed for all studies with microorganisms with no harmful and damage level uncertain. It provides full protection against particles produced within the working zone. Provides full protection against contaminants suspended in ambient air.
The product and process within the working zone, the employee against cross contamination, the working environment and the product worked fully protect. The device uses H14 Aluminum case and Dual surface protected H14 filters. Wood or fiber sheet is not used in the filter group.
The cab has a continuous lubricated centrifuge or a directly driven fan/engine, dynamically balanced on two planes for low noise, low vibration and long service life in accordance with standards. The latest generation of energy efficient fan is used to provide constant airflow despite building voltage fluctuations.

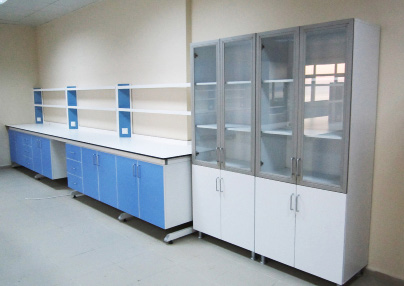

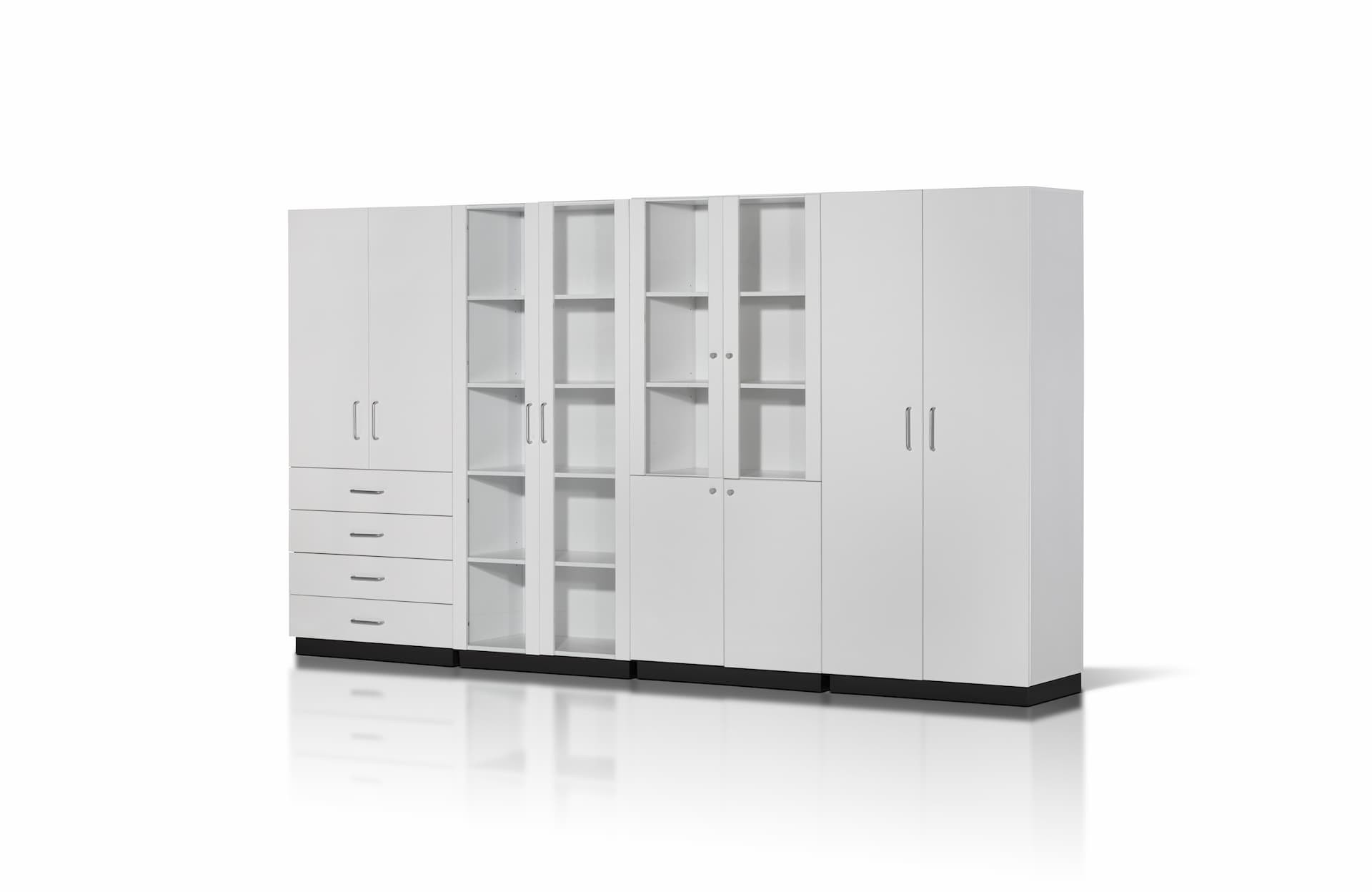

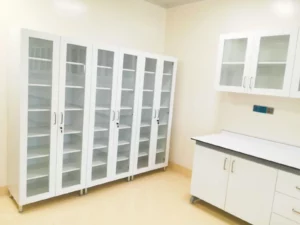

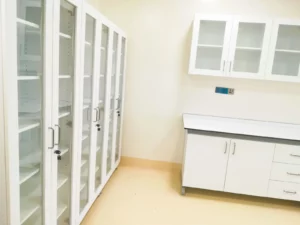

Material cabinets have the same structure as under-bench cabinets in the laboratory and are used for storing glass or laboratory materials. It is not recommended to store any kind of chemical. Adjustable shelf height feature provides flexibility in cabinet storage volume. HAFELE brand hinges in accordance with DIN 68857 standard, which can be opened at 110C, are used on cabinet doors.
The body is made of 18 mm MDF.
It become 6 chemical resistant polypropylene tray with soft closing rails.
The inner surface is melamine coated for high chemical resistance.

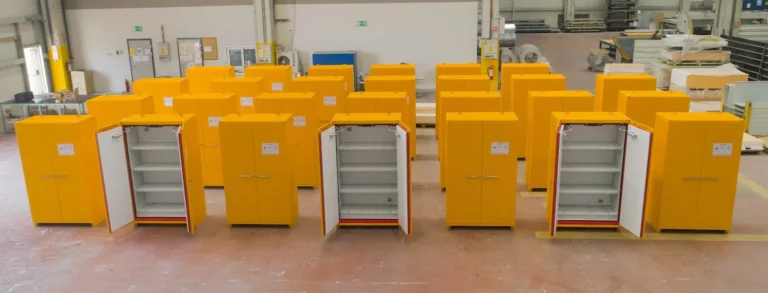

Gaskets on the door walls prevent dangerous gases from leaking into the outside environment.
There are two hermetically separate storage areas.
Cabinet doors can move and lock independently of each other.
Ventilation openings are corrosion resistant.
With the clean air inlet and dirty air outlet on the cabinet pan, ventilation of both compartments of the cabinet is provided.
25 kg. drawer carrying capacity (evenly distributed)
External dimensions: Approx. 600 x 600 x 1970 mm
Internal dimensions: Approx. 527 x 527 x 910 mm
Tray dimensions: Approx. 430 x 475 x 80 mm
Cabinet weight: Approx. 125 kg.
Our product has resisted temperatures reaching 1000 degrees celcius for over 106 minutes during the fire ressistance tests. This certifies our cabinet according to EN 14470-1.
