STANDARD EQUIPMENT
High quality components such as IP55 electric motors with the IE3 efficiency class, IP54 fan motors, star-delta motor starter system, electrical materials selected according to IEC, UL/cUL, CE standards as per the market requirements, high- efficiency screw blocks consuming less energy are provided as standard in all our products.
SERVICEABILITY
Service-friendly design implemented using a layout that provides instant access to all consumable items, with quick-release protective covers and easy-to-use controllers minimizes downtime and reduces maintenance costs.
SCREW BLOCK
Patented durable screw block which can supply the system with air in high-capacity and has been specially selected according to each model’s requirements Production of air with less loss of air thanks to the new rotor profiles, and lower torque requirements New generation bearing design with increased load carrying capabilities
AIR OIL SEPARATOR
Spin-on separator
Easy replacement, ease of assembly and disassembly Design that does not require a separator tank
MAIN MOTOR AND DRIVE SYSTEM
High efficiency 400V/3 phase/50Hz, IE3 IP55 electric motors with F Class insulation Star delta motor starting system
Easy of assembly and disassembly with bush pulleys on belt-pulley models Direct compled model, long-lasting and efficient transfer system thanks to use of elastic couplings

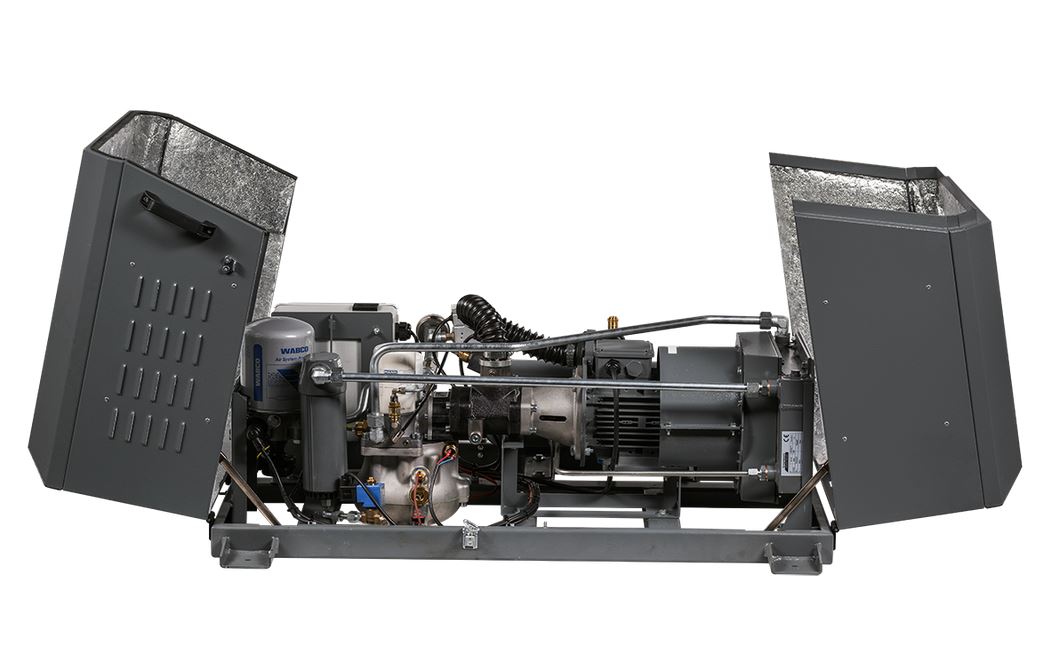

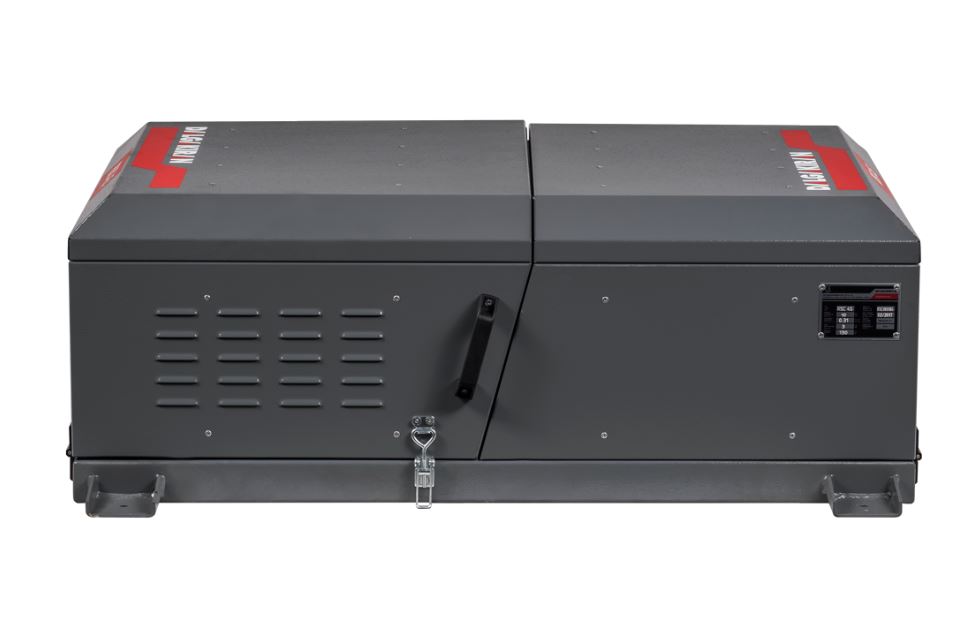

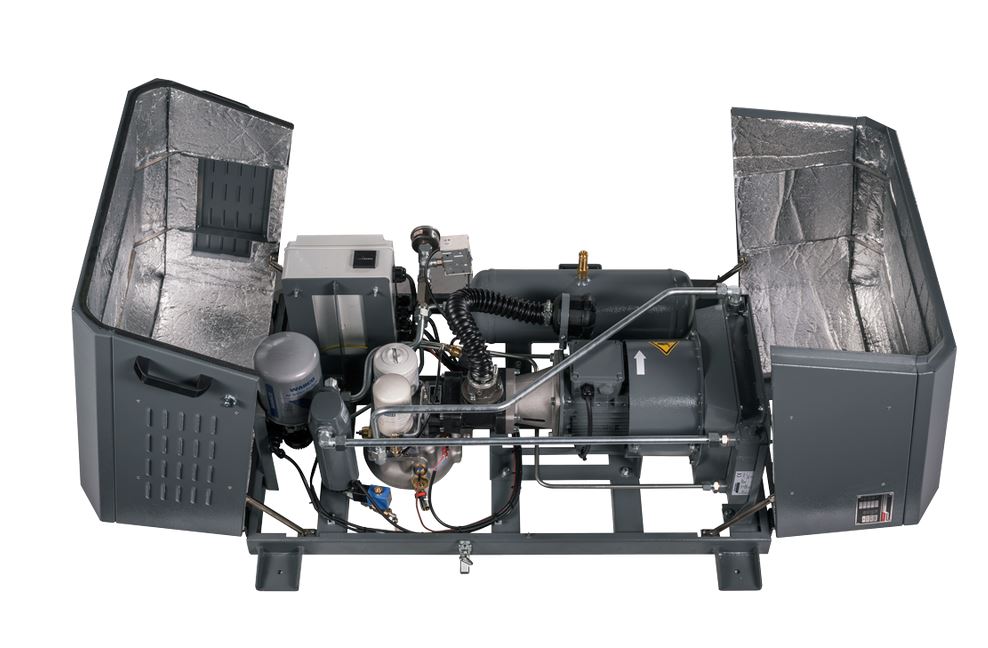

RSC SERIES
Rotary Screw Air Compressors
Dalgakıran RSC series compressors are designed to meet the pressurized air requirements of rail system vehicles.

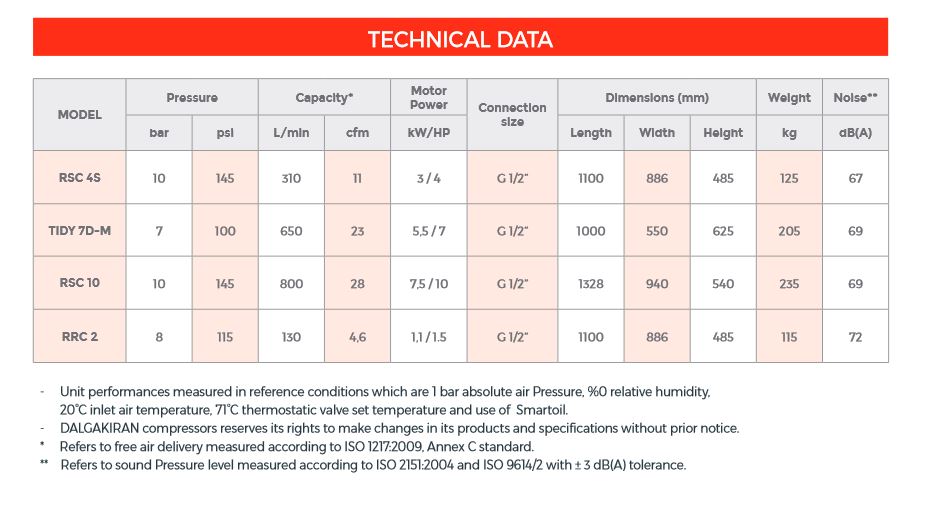

GENERAL SPECIFICATION
EN 286-3 standard
MAIN MOTOR DRIVE SYSTEM
Directly coupled with the elastic coupling
COOLING SYSTEM
Quiet and efficient axial fan directly connected to the main motor)
SEPARATORS AND
COMPACT AIR DRYER
MULTI-BLOCK
